SPECIFICATIONS

Brand Name: life2easyhk

Timer Type: Ac Pro

Origin: Mainland China

Model Number: 10252,11772,10036,10092

Type: Garden Water Timers

Material: Plastic

Name: Knob Irrigation Timer

Power Supply: 2 * AA Alkaline Batteries(not included)

Working Temperature: 0°C-50°C

Working Pressure: 3~8 bar

Faucet Connection: EU Standard Thread(EU Same with UK)

Timer Inlet: 1/2"*3/4" Female Thread

Timer Outlet: 3/4" Male Thread,16mm Quick Nipple Joint

Watering Duration: Adjustable 1~300 minutes

Frequency: Adjustable 6 hours, 12 hours, 1 day~7 days

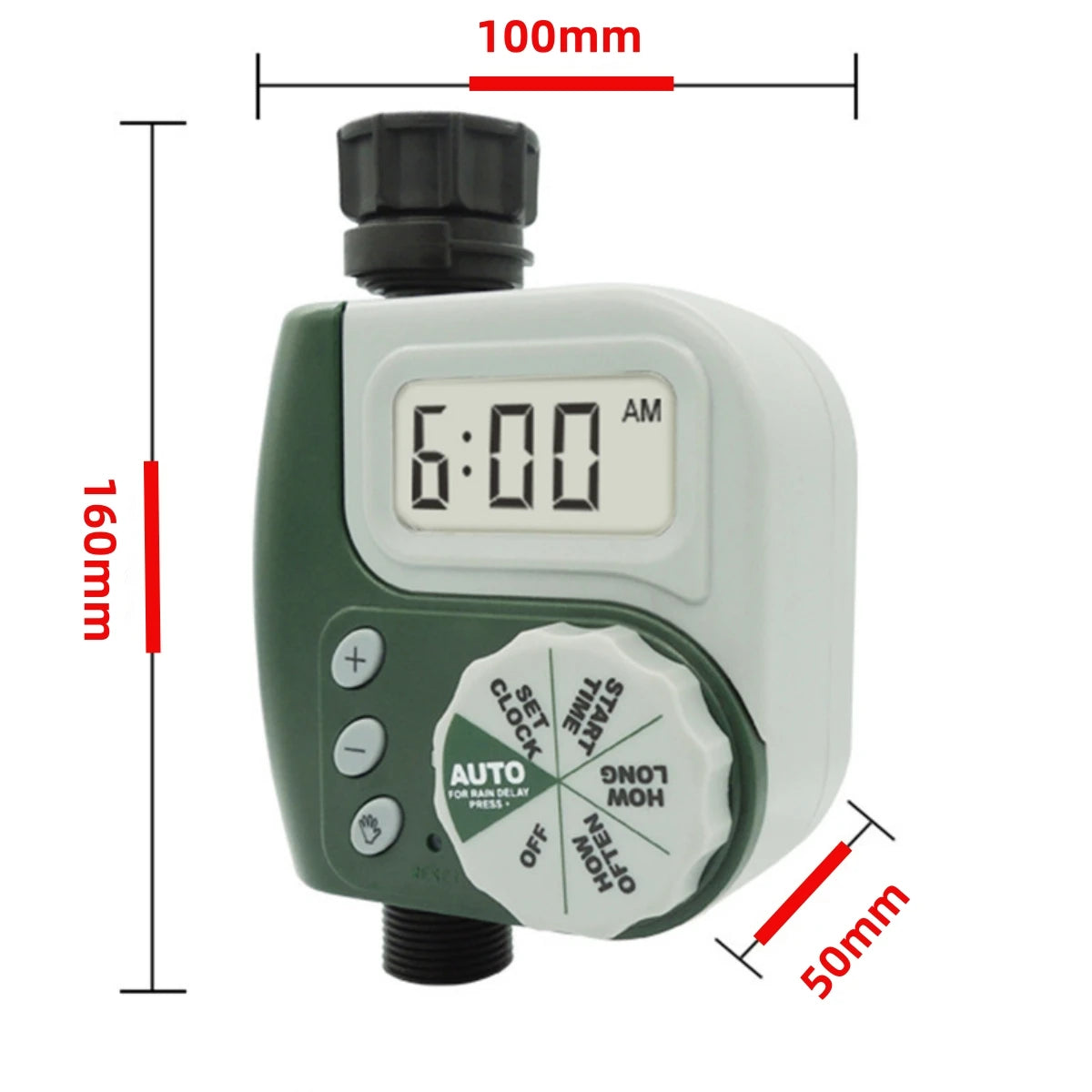

Item Size: About 16*10*5cm

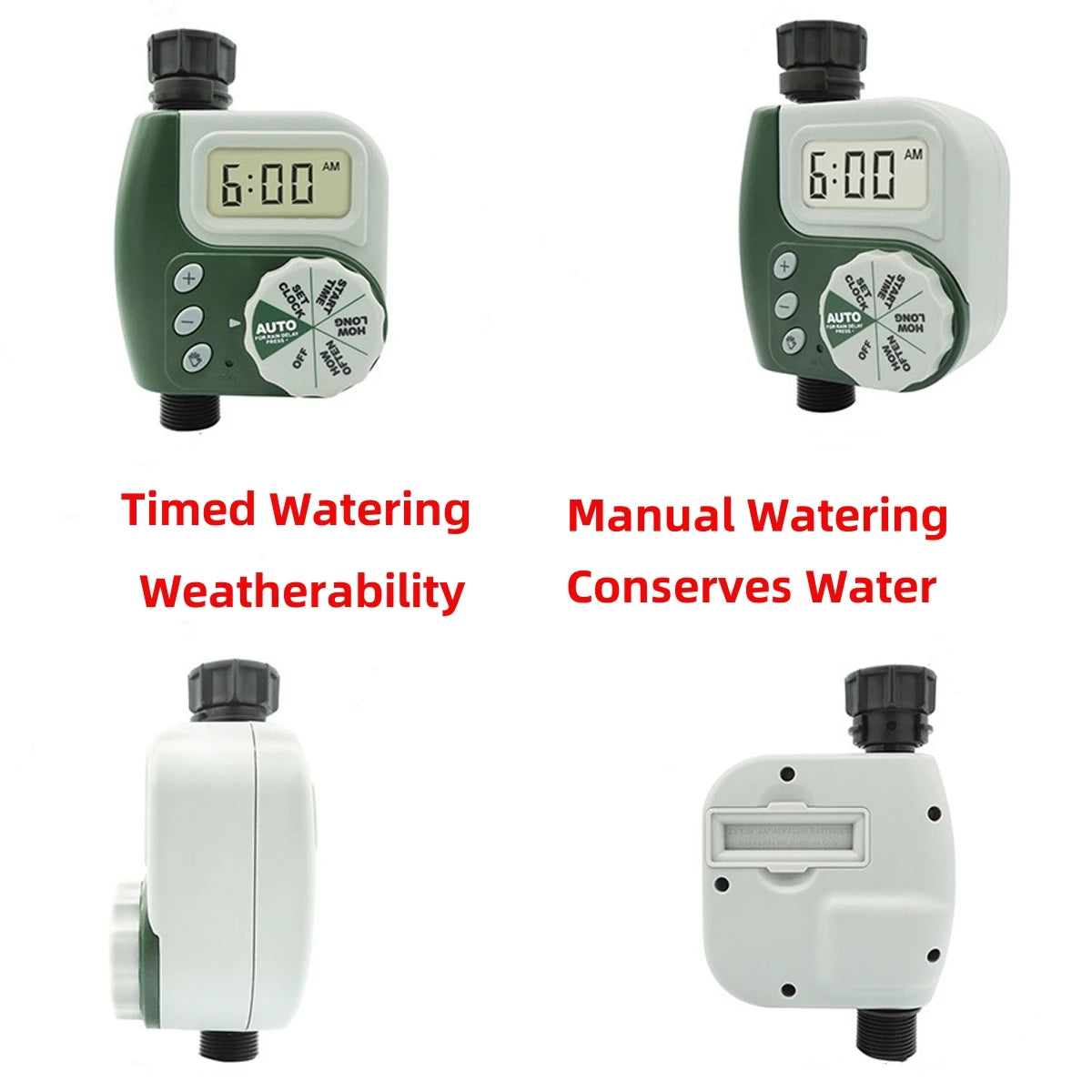

Frature: Timed Watering, Manual Watering, Weatherability, Conserves Water

Quantity: 1Pc

1. High-end materials: The nozzles, hoses, tees, etc. are all made of new materials, which are of high quality and durable.

2. Automatic watering: Equipped with a high-quality timer to water at regular intervals. No need to do it yourself, making business trips more worry-free.

3. No pressurization required: Normal household tap water can be used directly, and self-owned water sources such as wells and water towers need to be pressurized separately.

4. Set accessories: nozzle/hose/three-way/single-way, etc. are all ready and can be installed quickly, usually in about 20 minutes.

5. Easy to use: Easy to install, can be arranged according to your needs, strong autonomy, and flexible distribution.

6. The LED display screen is wide and the display is clear.

Package Includes: 4 types for you to choose

Type1: 1Pc x European Standard Thread Knob Irrigation Timer (Batteries not included)

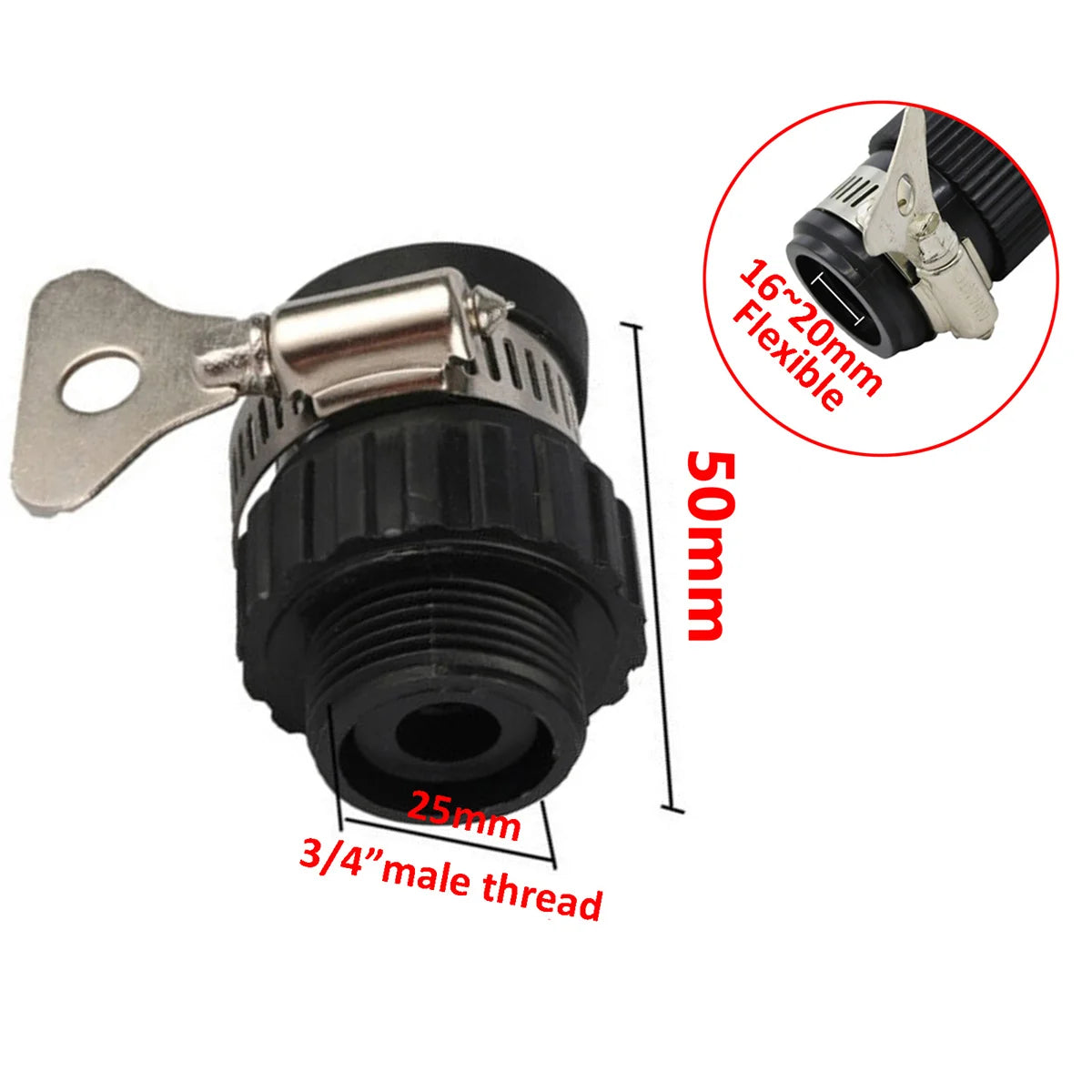

Type2: 1Pc x 3/4" Male Thread Faucet Adapter

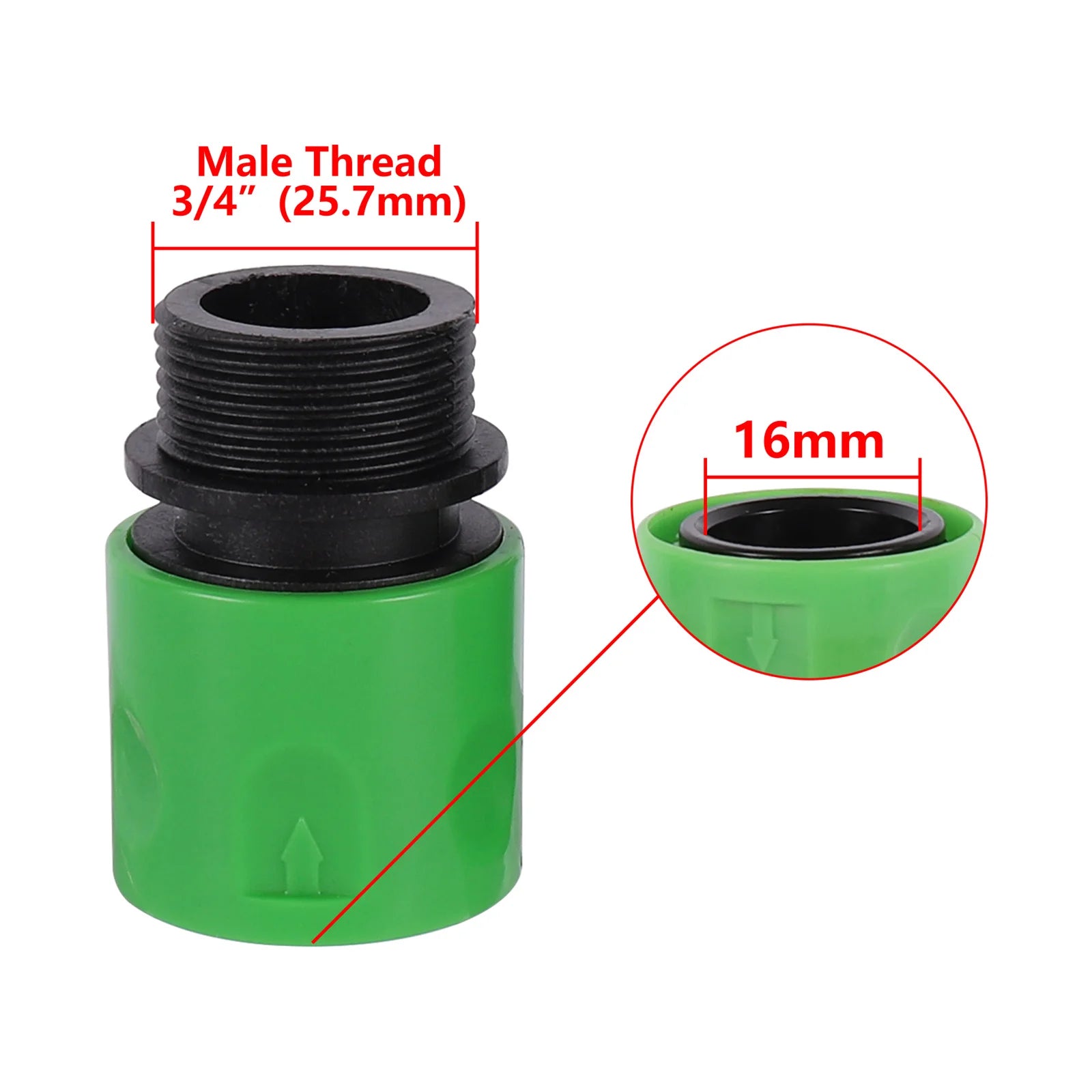

Type3: 1Pc x 3/4" Male Thread Quick Connector

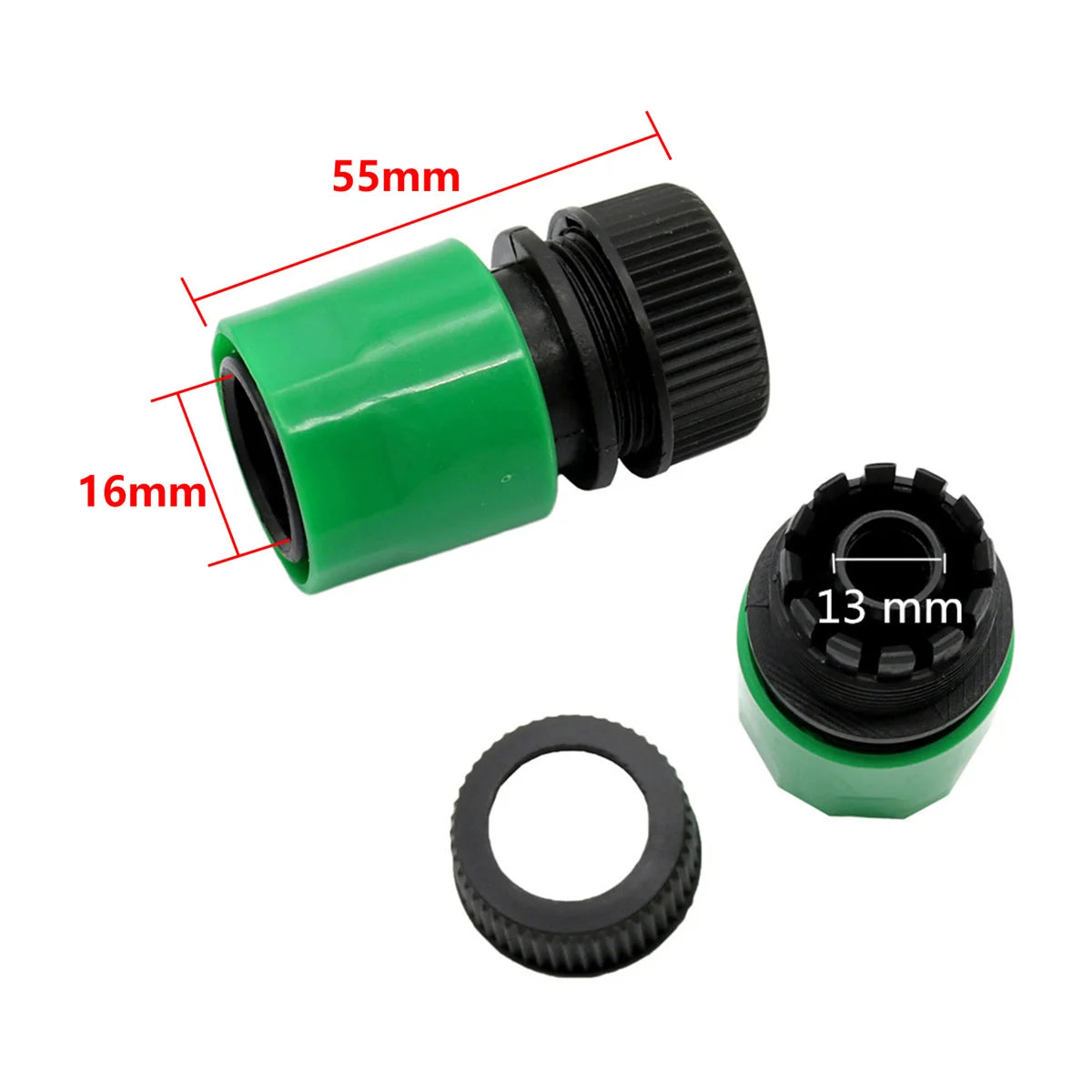

Type4: 1Pc x DN16mm Hose Quick Joint

 Button Setting Instructions:

• +/- : Use these buttons to adjust the time and system settings.

• Shift Key: Hours/minutes/seconds time conversion

• OK: Program OK key

• Manual Watering Key:Press and hold for 3 seconds to start manual irrigation.

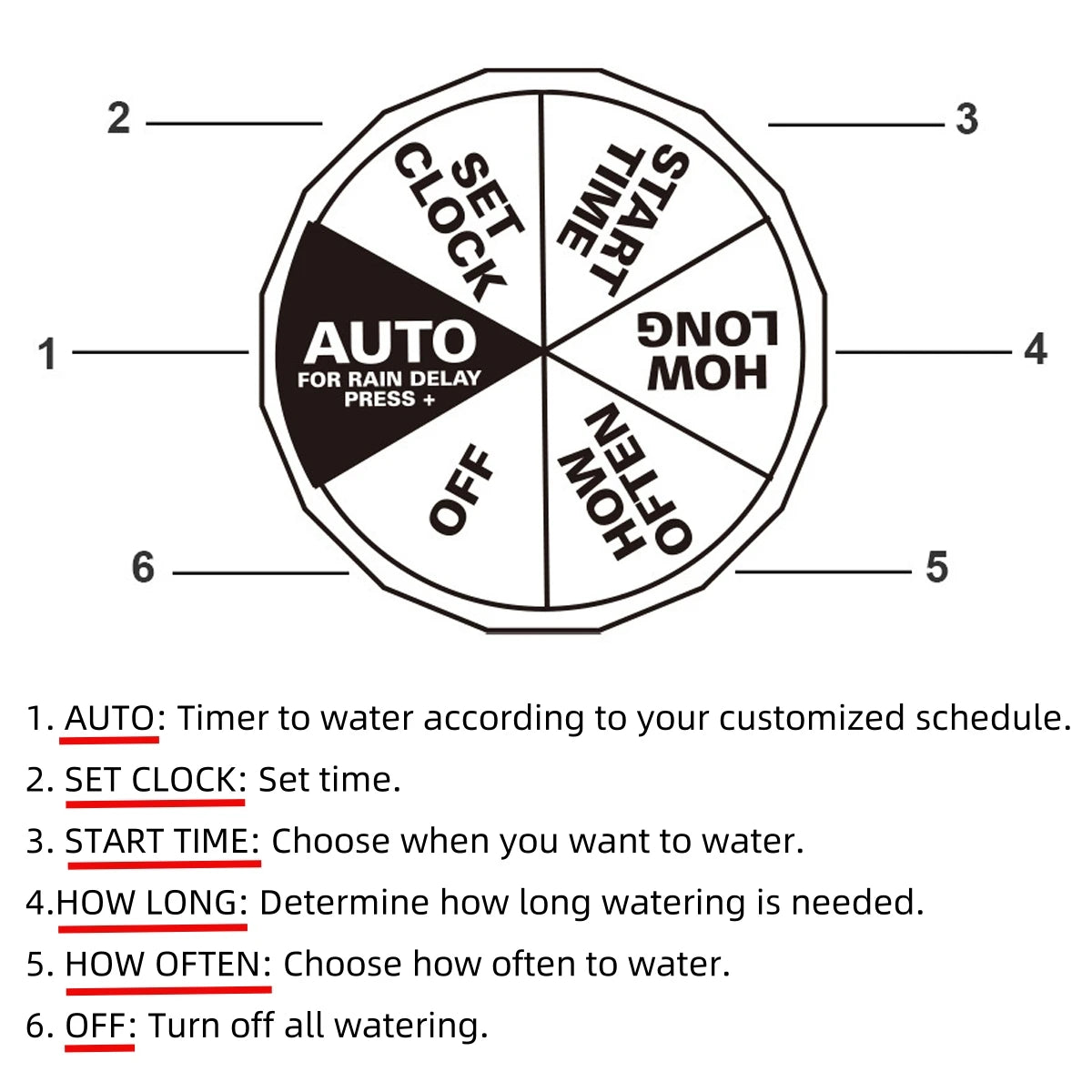

• AUTO: Timer to water according to your customized schedule

• SET CLOCK: Set time

• HOW LONG: Determine how long watering is needed

• HOW OFTEN: Choose how often to water

• OFF: Turn off all watering

• START TIME: Choose when you want to water

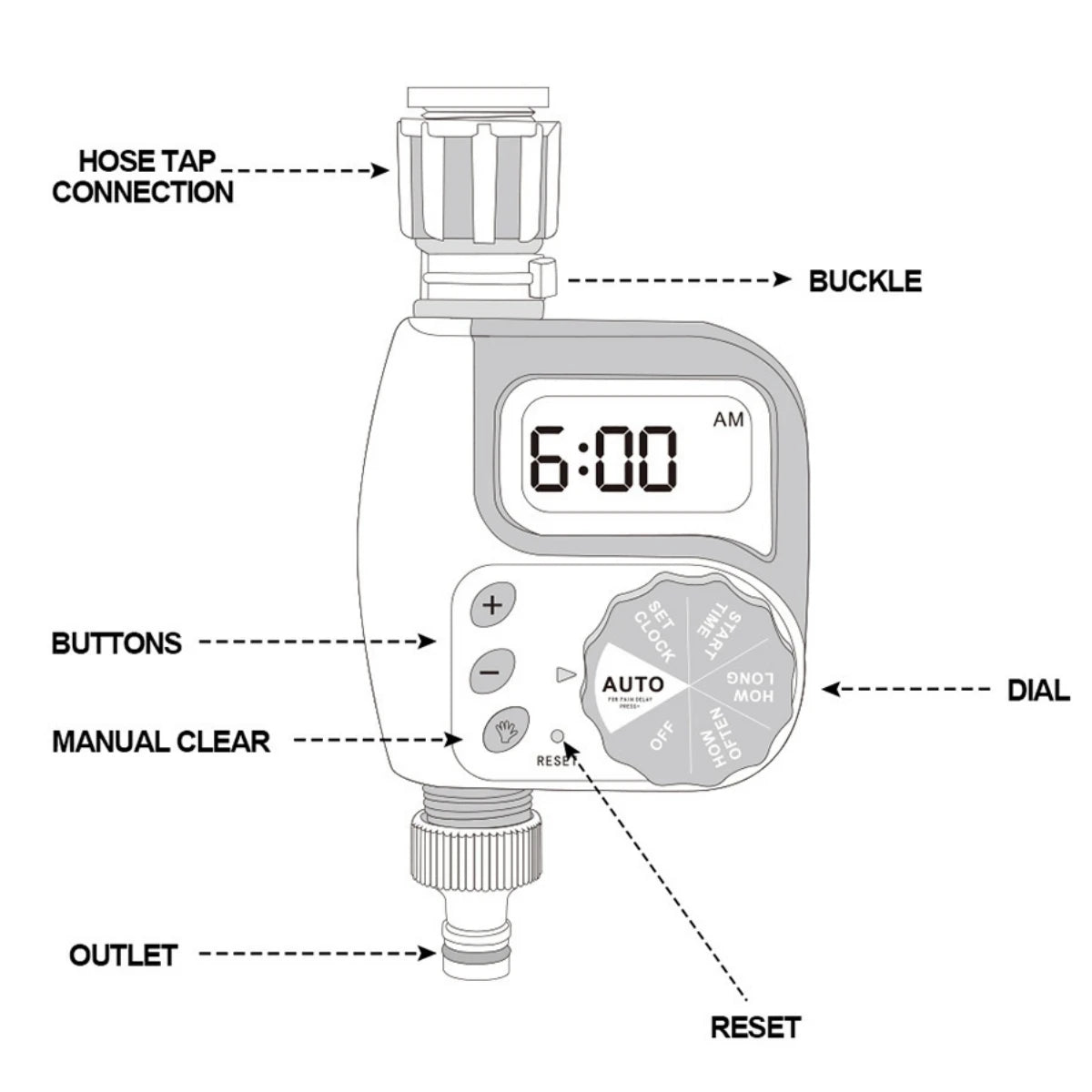

 How To Use:

1. Setting Dial: Turn the dial to customize your watering schedule.

2. Reset Button: Clears all programming manual on a specific program/Clear Press.

3. Manual or Clear Programming Manual Watering: (+/-) Buttons Use these buttons to adjust time and system settings.

4. Temporary watering: Manually press and hold for 5 seconds to hear a click, which means it is turned on, and the same is true for turning it off.

• AUTO (automatic): After all settings are completed, turn the dial to AUTO. At this time, the screen displays the current time and the time until the next watering, jumping with each other.

• SET CLOCK (set the current time): Set your current specific time by pressing the + - button for a long time. For example, 8:00AM represents 8:00 am.

• START TIME (set start watering time): Press the + - button for a long time to set the time you need to start watering. For example, 9:00AM means watering starts at 9:00 am.

• HOW LONG (set watering time): Press and hold the +- button to set the watering time you need (freely set from 1 minute to 300 minutes). For example, 9MINS means watering for 9 minutes.

• HOWOFTEN (set watering interval): Can be set from 6 hours to 12 hours, 1 day to 7 days. If set to 6HRS, it means watering every 6 hours.

• OFF (turn off the timer):Turn the turntable to the arrow OFF to turn off the timer program.

WARNINGS

1. Due to different computer display colors, the actual color may differ slightly from the above pictures. Thank you for your understanding.

2. Please allow slight dimension differences due to different manual measurements. Thank you!
